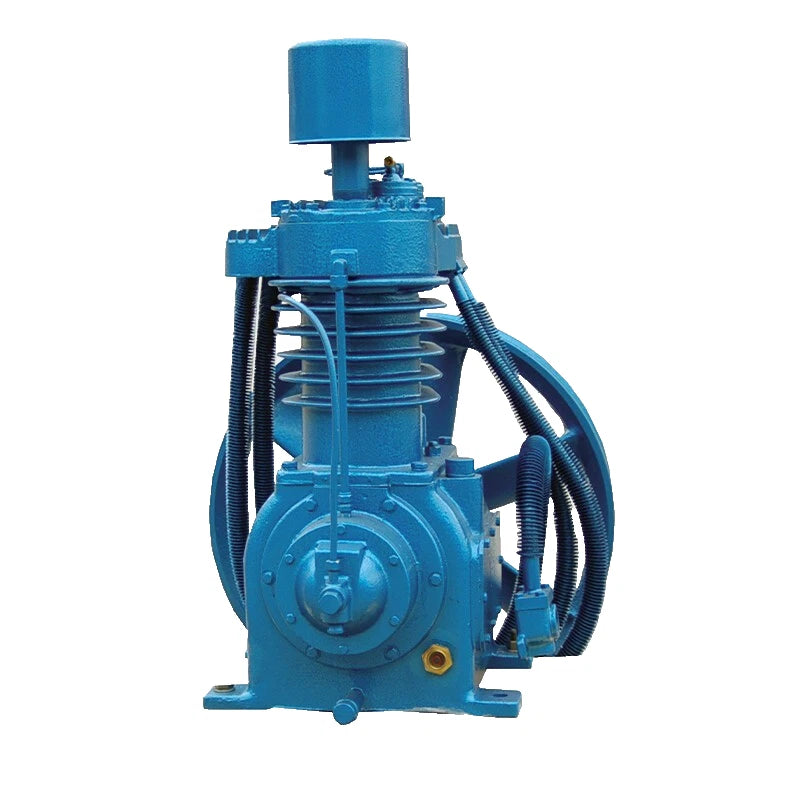

Kellogg 352 Air Compressor Pump Replacement, Two-Stage, 7.5 - 10 HP
Kellogg 352 Air Compressor Pump Replacement, Two-Stage, 7.5 - 10 HP
Regular price
$3,090.00 USD
Regular price
Sale price
$3,090.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Kellogg American Clone
High Quality
Replacement Pump
Part#: X1033
Kellogg 352 Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 7.5 - 10 HP (with head unloader option). Can be used for both gas/electric constant run or electric start/stop.
HP: 10 HP
Stage: 2
Cylinder: 2
Weight: 480
Delivers: 34 CFM at 175 PSI (10 HP)
Cast-Iron Construction
Slow Speed (645 RPM)
Steel Rods with Inserts
Positive Ring Fed Lubrication
Centrifugal Unloading
Head Unloading
Specifications
- HP Rating: 7.5 to 10
- Stages: Two-Stage
- Drive: Reciprocating / Oil-Bath (splash-lubricated)
- CFM Delivery: 34 Displaced CFM @ 175 PSI (10 HP) / 35.2 Displaced CFM @ 100 PSI (10 HP)
- Max PSI: 200 PSI
- Material of Construction: cast iron with steel sleeves
- Flywheel: 25.25" OD four "B" groove
- RPM Range: 520 / 627
- Oil Capacity: 2 qts.
- Weight: 520 lbs.
- Bore & Stroke: 5.5" x 5" (LP) / 3" x 5" (HP)
- Dimensions (LxWxH): 25.25" x 14.5" x 30.5"
- Bolt Pattern: 10" (front-to-back) / 14.5" (side-to-side)
- Outlet: 3/4" FPT (exhaust on the right side of the pump head when looking at the front of pump opposite the flywheel)
*Don't see what you're looking for? Message us and we're happy to help!*
These pumps ship directly from the manufacturer. If there is any lead time or discrepancies with your order you will be reached out to immediately. If you need to check if this is immediately available, please contact us.
