Kellogg 452TVX Air Compressor Pump Replacement, Two-Stage, 7.5 - 10 HP
Kellogg 452TVX Air Compressor Pump Replacement, Two-Stage, 7.5 - 10 HP
Couldn't load pickup availability

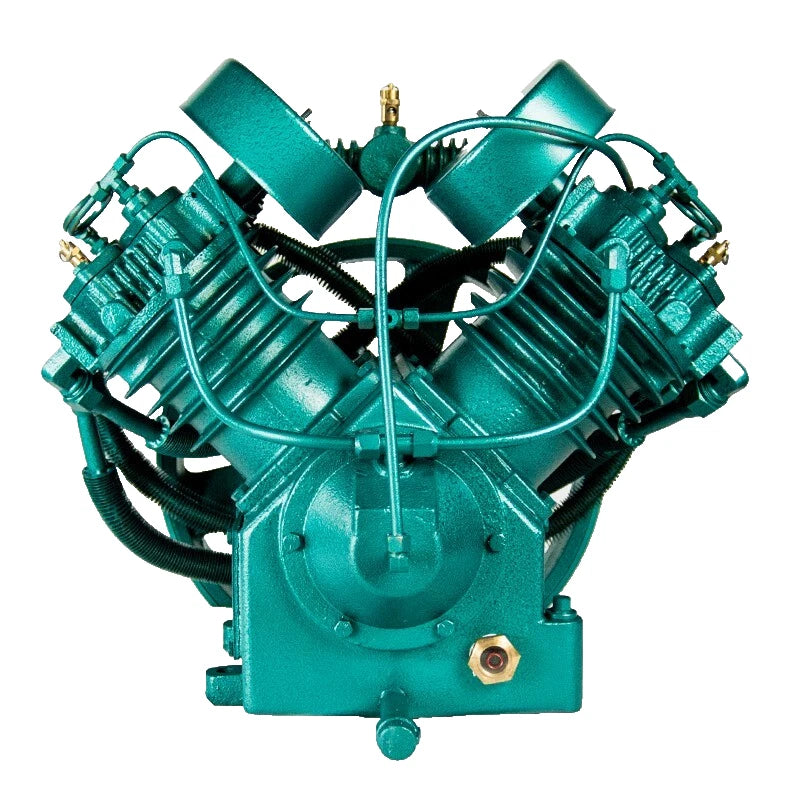

Complete Kellogg 452 air compressor replacement pump assembly, ready to bolt on. 7.5 - 10 HP. Has head unloaders. Can be used for start/stop or constant-run (gas-powered) units.
Stage: 2
Cylinder: 4
Weight: 310
Delivers: 35.2 CFM at 175 PSI (10 HP)
Cast-Iron Construction
Slow Speed (730 RPM)
Steel Rods with Automotive Type – Inserts and Needle Bearings at Wrist Pins
Positive Ring Fed Lubrication
Centrifugal Unloading
Head Unloading
Specifications
HP Rating: 7.5 to 10 HP
Stages: Two-Stage
Drive: Reciprocating / Oil-Bath, 4-cylinder v-twin
CFM Delivery: 28 Displaced CFM @ 175 PSI (7.5 HP) / 35.2 Displaced CFM @ 175 PSI (10 HP)
Max PSI: 200 PSI
Material of Construction: cast iron with steel sleeves
Flywheel: 18" OD / three "B" groove
Output Shaft Size: 1-3/8" OD x 4-1/4” (+/-)
RPM Range: 590 / 846
Oil Capacity: 4 qts.
Weight: 275 lbs.
Bore & Stroke: 4.75" x 3" (LP) / 2.5" x 3" (HP)
Dimensions (LxWxH): 18-5/8" x 22-3/4" x 17-3/8"
Bolt Pattern: 6-1/4" (front-to-back) / 10-5/8" (side-to-side)
Outlet: 3/4" FPT
