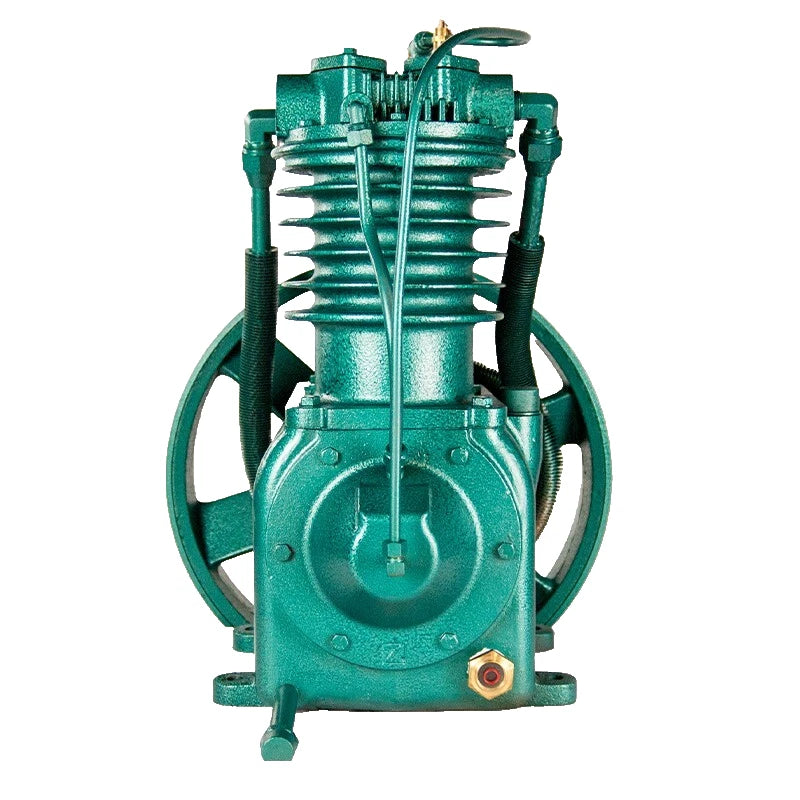

Kellogg R332 Air Compressor Pump Replacement, Two-Stage, 3-5 HP
Kellogg R332 Air Compressor Pump Replacement, Two-Stage, 3-5 HP
Regular price
$1,547.00 USD
Regular price
Sale price
$1,547.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Kellogg American Clone
High Quality
Replacement Pump
Part#: X1031
Old Part Numbers: 331
R332 Air Compressor Pump Replacement, Complete Assembly, Two-Stage, 3 - 5 HP. Ready to bolt on. Usually for start/stop electric motor powered units. Import version 332 Kellogg pump.
Note: This pump does not include head unloaders for constant-run systems.
HP: 3, 5 & 7.5 HP
Stage: 2
Cylinder: 2
Weight: 240
Delivers: 17.2 CFM at 175 PSI ( 5 HP )
Delivers: 25 CFM at 175 PSI ( 7.5 HP )
Cast-Iron Construction
Long Stroke Design
Automotive Type Inserts and Needle Bearings at Wrist Pins
Centrifugal Unloading
Optional Head Unloading
Stage: 2
Cylinder: 2
Weight: 240
Delivers: 17.2 CFM at 175 PSI ( 5 HP )
Delivers: 25 CFM at 175 PSI ( 7.5 HP )
Cast-Iron Construction
Long Stroke Design
Automotive Type Inserts and Needle Bearings at Wrist Pins
Centrifugal Unloading
Optional Head Unloading
Specifications
- HP Rating: 3 to 5
- Stages: Two-Stage
- Drive: Reciprocating / Oil-Bath
- CFM Delivery: 20.2 Displaced CFM @ 100 PSI (5 HP) / 17.2 Displaced CFM @ 175 PSI (5 HP)
- Max PSI: 200 PSI
- Material of Construction: cast iron with steel sleeves
- Flywheel: 18" OD / three "B" groove
- RPM Range: 345 / 668
- Oil Capacity: 2 qts.
- Weight: 200 lbs.
- Bore & Stroke: 4.75" x 4" (LP) / 2.5" x 4" (HP)
- Dimensions (LxWxH): 21-3/32" x 10-5/8" x 23"
- Bolt Pattern: 6-1/4" (front-to-back) / 10-5/8" (side-to-side)
- Outlet: 3/4" FPT
*Don't see what you're looking for? Message us and we're happy to help!*
These pumps ship directly from the manufacturer. If there is any lead time or discrepancies with your order you will be reached out to immediately. If you need to check if this is immediately available, please contact us.
