Square D 10 HP / Three Phase / 230 Volt Magnetic Starter 8911DPSG43V09 40 Amp
Square D 10 HP / Three Phase / 230 Volt Magnetic Starter 8911DPSG43V09 40 Amp
Regular price
$389.00 USD
Regular price
Sale price
$389.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Square D Definite Purpose Magnetic Starter Nema 1 Enclosure
Part#: 8911DPSG43V09 + B56 (3) Heaters

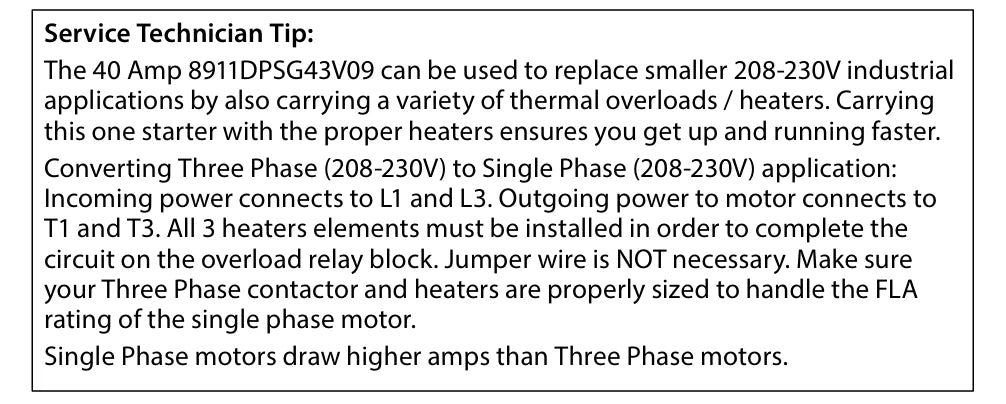

These magnetic motor starters are sold without heaters, but we include the proper heater for your application with shipment! This starter includes 3 x B56 heaters. If you need a different heater included, please just send us a message and we'll be happy to swap out for a lower amperage heater.
| Product | Definite Purpose Starter |
|---|---|
| Ampere Rating | 40 A |
| Horsepower Rating | 3 hp 115 V AC, 1 phase 10 hp 230 V AC, 3 phase 7.5 hp 230 V AC, 1 phase 20 hp 460 V AC, 3 phase 25 hp 575 V AC, 3 phase |
| Maximum Voltage Rating | 600 V AC |
| Control Circuit Voltage | 220 V AC 50 Hz 208...240 V AC 60 Hz |
| Phase | 3 phase |
| Enclosure Material | Painted sheet steel |
|---|---|
| Enclosure Rating | NEMA 1 |
| Locked Rotor Amperes | 240 A 230 V AC 200 A 460 V AC 160 A 575 V AC |
| Number of Poles | 3P |
| Range | DPS |
| Overload Type | Melting alloy |
| Number of Thermal Units | 3 |
- All Square D 8911 series starters are equipped with definite purpose contactor, melting alloy overload block, trip free reset and NEMA 1 metallic enclosure
- Replacement coils for 8910 & 8911 series starters are obsolete. The contactor will need to be replaced in the event of a failed coil
- For the most reliable motor protection, always select your starter based on the FLA current reading on the motor data plate
- Refer to the applicable electric codes in your area for information on selecting the proper wire size and securing electrical connections
- Install adequately sized power leads to protect against excessive voltage drop during start-up
- Always confirm the supply voltage to ensure a safe installation of motor controls
- Square D 8911 series replacement coils are obsolete
*Don't see what you're looking for? Message us and we're happy to help!*
