Compressor Components Company

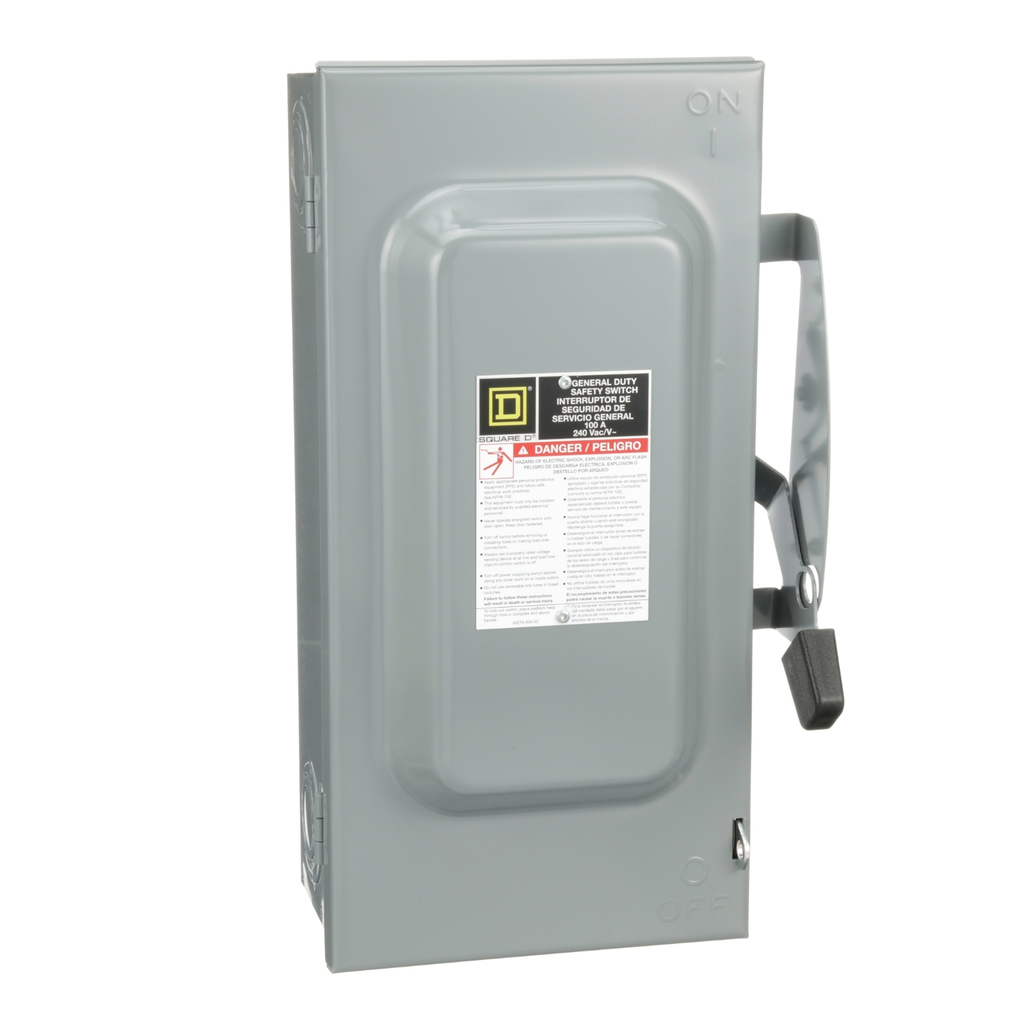

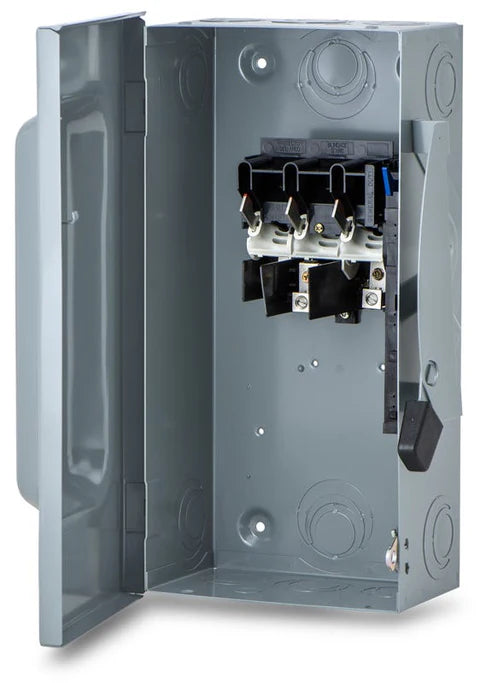

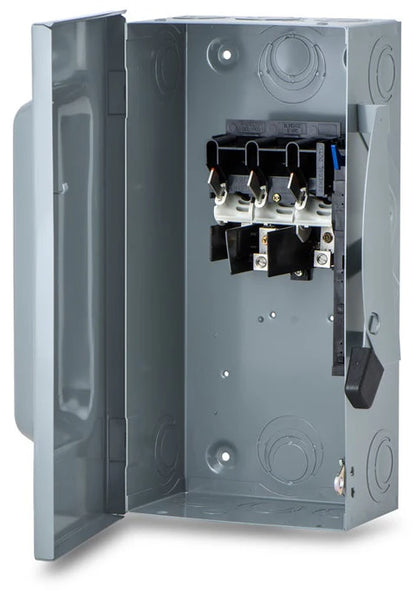

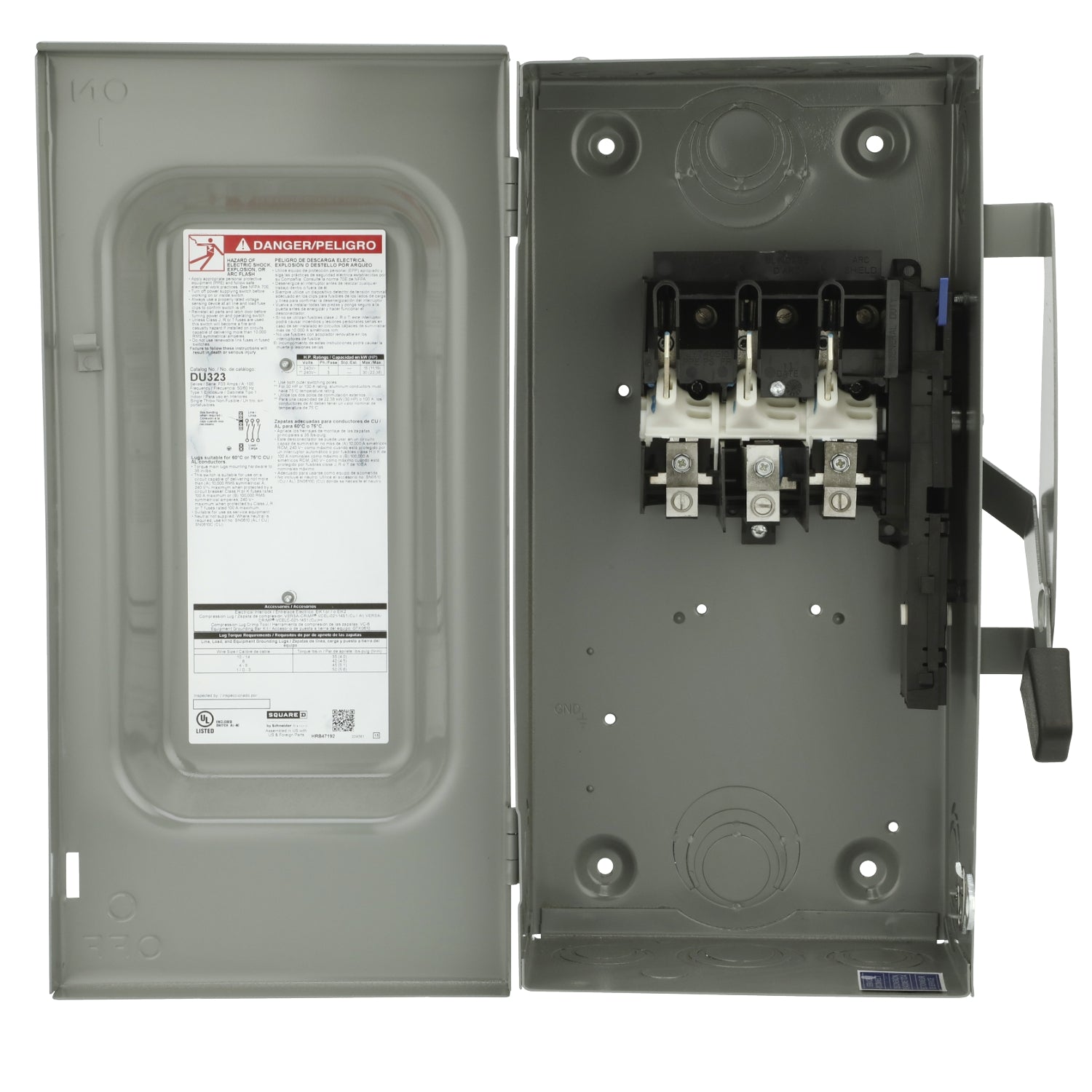

Square D Single Throw Safety Shut Off Switch DU323 100 Amp 3 Pole
Square D Single Throw Safety Shut Off Switch DU323 100 Amp 3 Pole
Regular price
$280.00 USD
Regular price
Sale price
$280.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Square D Single Throw Safety Shut Off Switch
Part#: DU323
- Designed for residential and commercial applications
- Provides over-current and short circuit protection
- Excellent for disconnecting lighting, air condition, and appliances
- UL listed
- Non-fusible disconnect with NEMA 1 enclosure handles Single or 3 Phase @ 240V
| Number of Poles | 3 | |||||
|---|---|---|---|---|---|---|
| Current Rating | 100 A | |||||
| Voltage Rating | 240 V AC | |||||
| Enclosure Rating NEMA | NEMA 1 | |||||
| Motor power hp | 15 hp at 240 V AC 60 Hz for 1 phase motors 30 hp at 240 V AC 60 Hz for 3 phase motors |
| Mounting Type | Surface |
|---|---|
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 14...AWG 1 copper AWG 12...AWG 1 aluminium |
| Tightening torque | 35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.08…5.26 mm²) (AWG 14...AWG 10) 35 lbf.in (4.0 N.m) (AWG 14...AWG 10) 40 lbf.in (4.5 N.m) 0.01 in² (8.37 mm²) (AWG 8) 45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4) 50 lbf.in (5.6 N.m) (AWG 3...AWG 1) |
*Don't see what you're looking for? Message us and we're happy to help!*
These parts ship directly from the manufacturer. If there is any lead time or discrepancies with your order you will be reached out to immediately. If you need to check if this part is immediately available, please contact us. Expedited shipping options are available at checkout.
