Compressor Components Company

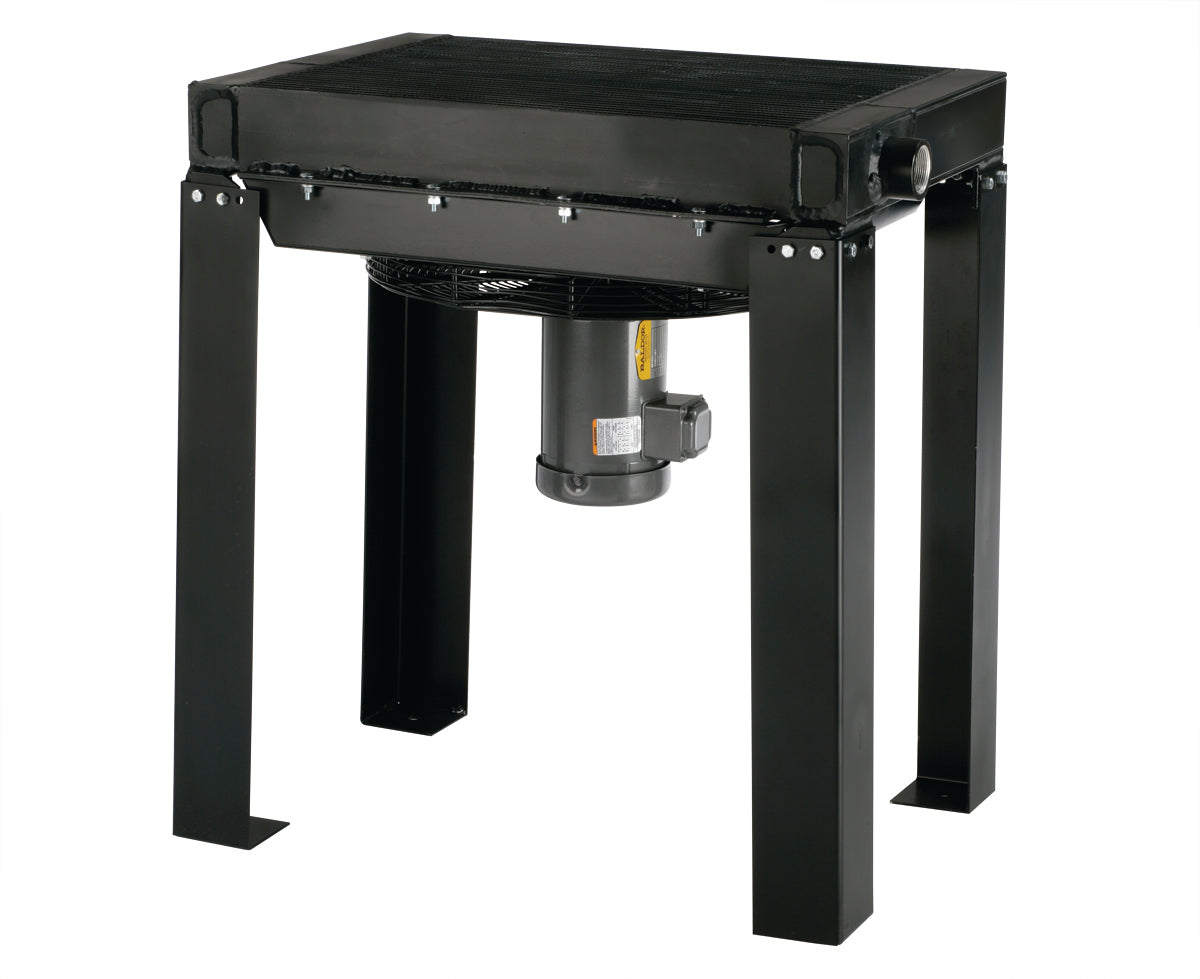

Thermal Transfer Air Cooled Aftercooler AHP-400-3, 3 Phase Motor TEFC 208-230V
Thermal Transfer Air Cooled Aftercooler AHP-400-3, 3 Phase Motor TEFC 208-230V
Regular price
$3,399.00 USD
Regular price
Sale price
$3,399.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Aftercooler
Part#: F5025
As part of the AHP series from TTP, the AHP-400-3 is an air-cooled heat exchanger designed for up to 400 CFM compressed air applications. With a heavy duty brazed aluminum bar and plate design, this One-pass heat exchanger offers optimized heat transfer and minimal pressure drops, making it ideal for air-to-air applications. This unit has vertical air flow. Coming standard with NPT connections, the motor type on this unit is Three Phase. No internal bypass or relief is offered. The AHP series has a maximum operating pressure of 250 PSI, and operating temperature of 350F-making it suitable as an aftercooler or other air treatment solution.
Configuration
Air Flow:
Vertical
Passes:
One
Connections:
NPT
Bypass:
None
Motor Type:
Three Phase

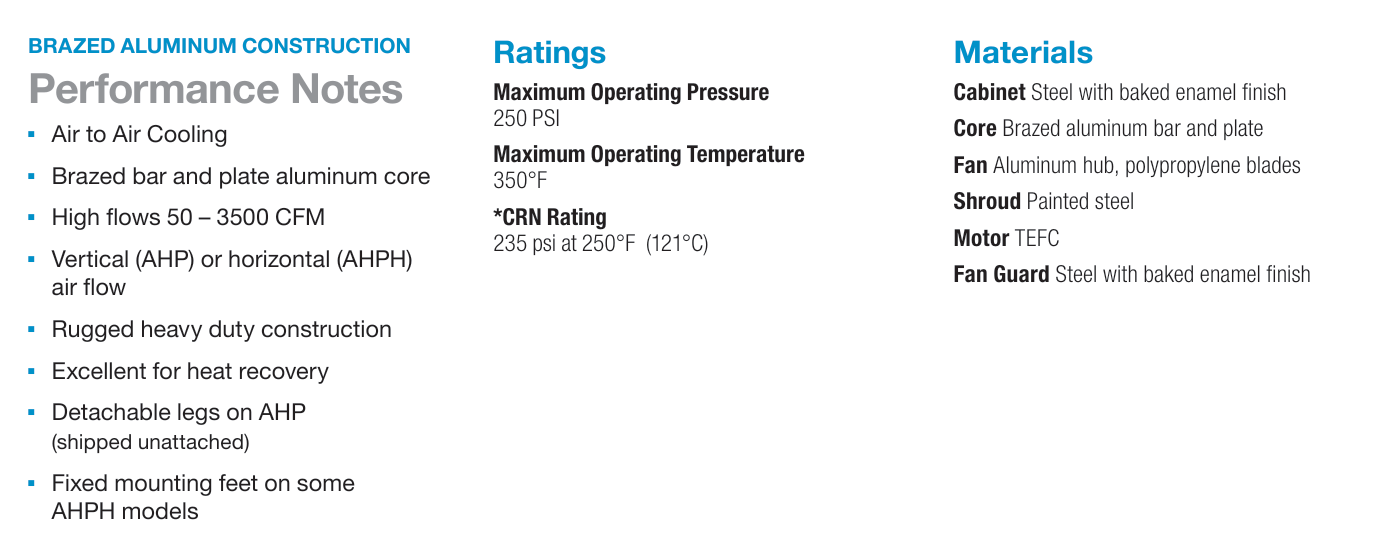

Materials of Construction
- Core: Brazed Aluminum Bar and Plate
- Fan: Aluminum Hub, Polypropylene Blades
- Cabinet: Steel with Baked Enamel Finish
- Shroud: Painted Steel
- Motor: TEFC
- Fan Guard: Steel with Baked Enamel Finish
Rating
- Operating Pressure: 250 PSI
- Operating Temperature: 350F
*Don't see what you're looking for? Message us and we're happy to help!*
These parts ship directly from the manufacturer. If there is any lead time or discrepancies with your order you will be reached out to immediately. If you need to check if this part is immediately available, please contact us. Expedited shipping options are available at checkout.
